Surveying mapping laser rangefinder
Survey laser rangefinder has a wide variety of applications in engineering building mapping , land measuring, road range, electricity installation industry, construction and industries.
Surveying mapping laser rangefinder specification
| Distance Range |
1500/2000/2500/3000 (m) |
| Magnification (X) | 7X |
| Field Angle | 6.6° |
| Laser type | 905nm (Class 1 laser) |
| Battery model | lithium battery (capacity 800mAh) |

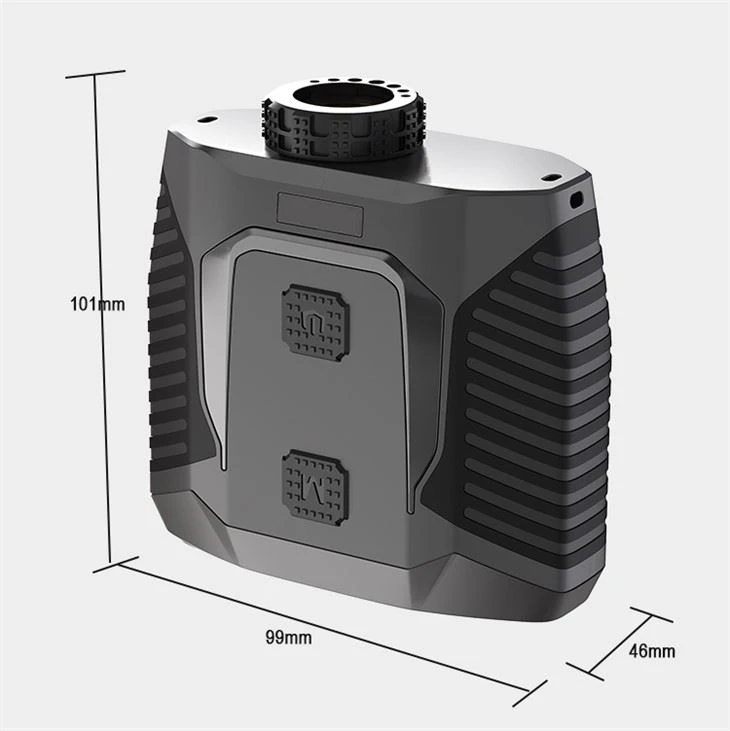

| External dimensions | 101*99*46(mm) |
| Angle range | ±89° |
| Accuracy | <400m, ±1m>; >400m,±0.4% |
| Objective diameter (mm) | 24mm |
| Eyepiece diameter (m) | 16mm |
| Exit pupil Diameter (mm) | 3.4mm |
| Exit pupil distance | 15.5 mm |

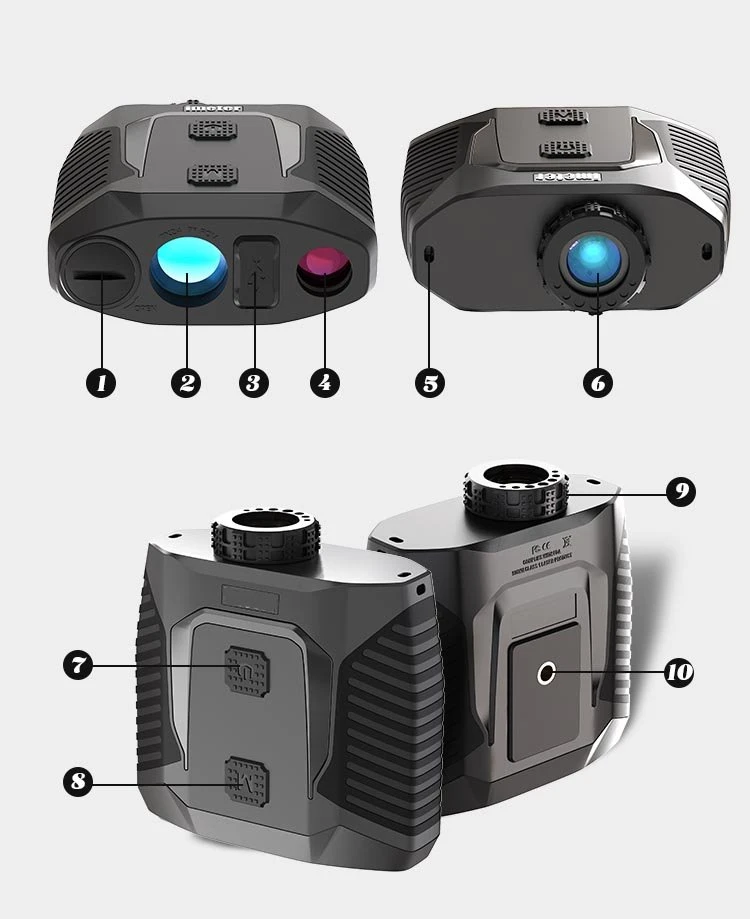

Surveying mapping laser rangefinder detail image
