5000m surveying mapping rangefinder
The surveying and mapping laser rangefinder has a long-distance measurement of 5000 meters, and has a wide range of applications in engineering and construction surveying and mapping, land surveying, road ranging, power installation, construction industry and other fields.
| Specification | Parameters | Unit Value |
| Ranging range | m | 10~5000 |
| Ranging accuracy | m | ①≤1000m±1m ②>1000m, ±1m + (D-1000)*0.2% |
| Inclination range | ° | ±90 |
| Inclination Accuracy | ° | ±0.25 |
| Azimuth accuracy | ° | ±0.5 (90 within 3s) |
| Diopter adjustment | D | +5 ~ -5 |
| Laser type | nm | 905nm (CLASS1 LASER) |
| Magnification | × | 7 |
| Field of view | ° | 6.6 |
| Objective lens effective diameter | mm | 24 |
| Eyepiece effective diameter | mm | 16 |
| Exit pupil diameter | mm | 3.4 |
| Exit pupil distance | mm | 15.5 |
| Battery model | mAh | Lithium Battery Inside (Type C) |
| Product weight | g | 270g |

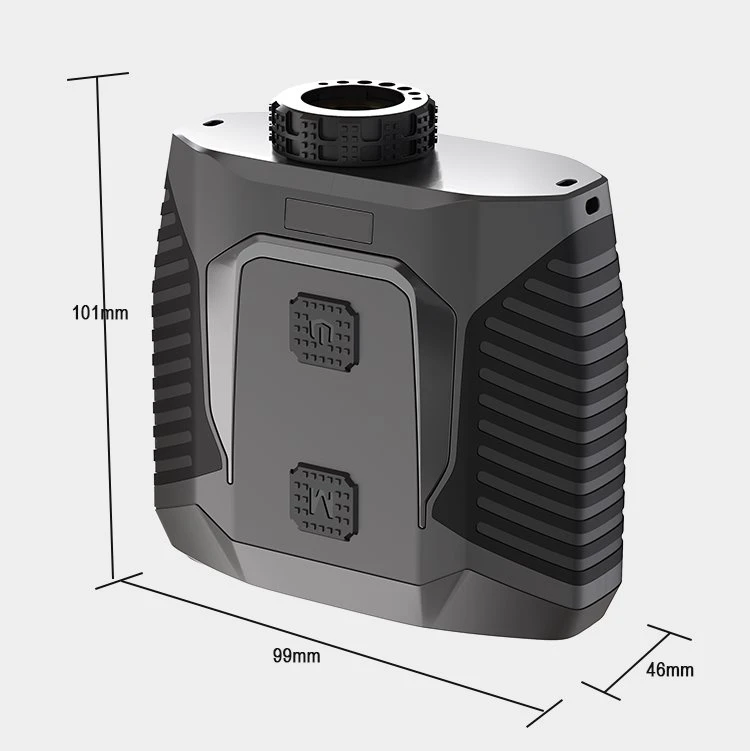

| Appearance size | mm | 101×99×46 |
| Working temperature | ℃ | -10~+55 |
| Protection class | IP | 65 |
Product accessories description
1. Rangefinder × 1
2. 18650 rechargeable battery × 1
3. Eyepiece protective cover × 1
4. Objective lens protection cover × 1
5. Mirror cloth × 1 piece
6. Cloth bag × 1
7. Manual × 1
8. Paper box × 1
