Extra Long Distance Military Rangefinder

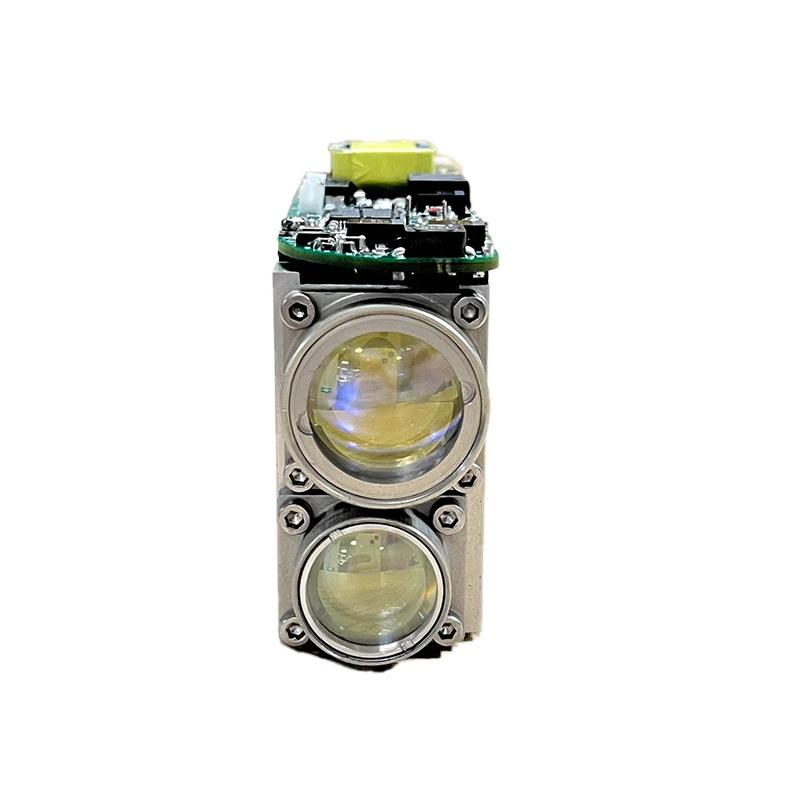

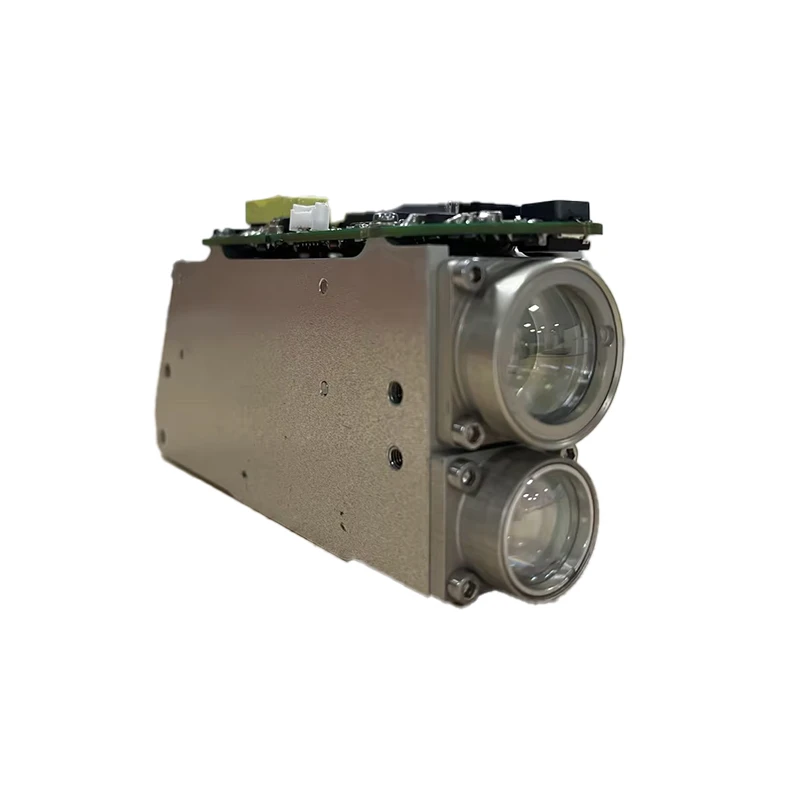

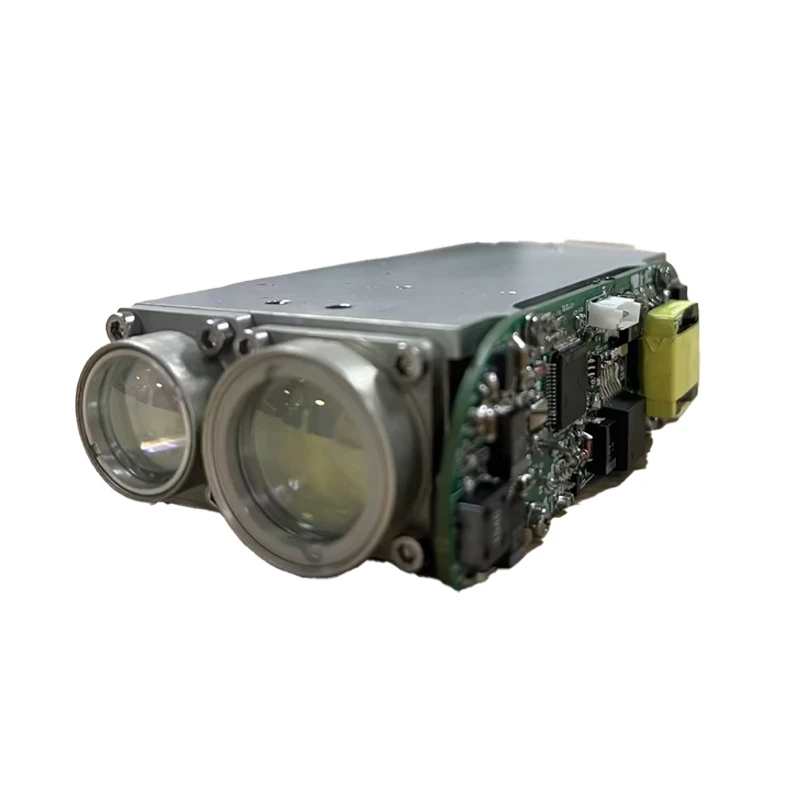

Extra Long Distance 16000 Meters Military Rangefinder a small module that could be easily integrated into various electro optical systems. The system could be used in forestry, natural resource management, general construction, utilities, mining, telecommunication, security and military sections. The module is specifically suitable for handheld military rangefinders, or light-weighted UAVs or drones.
|
Ranging |
|
|
Parameter |
Specification |
|
Laser Type |
solid-state laser |
|
Wavelength (nm) |
1064 |
|
Output Energy [per pulse] (mJ) |
Nominally 15 |
|
Pulse Width (nS) |
< 5 |
|
Beam Divergence [typical] (mrad) |
< 1 |
|
Beam Diameter [at exit] (mm) |
20 |
|
Receiver Aperture [main] (mm) |
16.5 |
|
Warm Up Time (min) 1 |
1 |
|
Detector [main] |
APD with time variant gain |
|
Range Read-out Limits (m) |
Min. 100 Max. 16000 |
|
Ranging Performance2 [Std. Clear 3 ; max.] (m): man [0.45 × 1.8m] vehicle [2.3 × 2.3m] building [large] |
2800 6000 12000 |
|
Range Accuracy [typical](m) |
±2 |
|
Ranging Rate [per minute] (Hz):
Typical Max.4
|
0.2 1: intervals of 20 shots at 0.5Hz with cool down period [total duration 2 min] |
|
Safety & Protection |
|
|
Laser Classification |
Class 3R |
|
Visible Emission Filter |
blocking |
|
Visible Emission [@ ≥5m] |
NIL |
|
Audible Emission [@ ≥ 5m] |
NIL |
|
Support |
|
|
MTBF1 [ground mobile] (shots) |
> 1,000,000 |
|
Warranty(year) |
1 |
|
Technical Service(year) |
10 |
|
Communications |
|
|
Port(s) |
Serial |
|
Type |
RS422 Full-DUPLEX |
| Baud Rate | 38400 |
|
Physical Characteristics |
|
|
Mass [approx.] (g) |
< 250 |
| Dimensions (mm): Length [body] *Width [body] *Height [body] |
119*61*28 |
|
Mounting |
3-point rear mount, tapped M3 holes (5mm deep) |
|
Electrical Requirements |
|
|
Operating Voltage [external] (Vdc) |
18 to 36 (optimum 24 ) |
|
Average Power Consumption (W) |
< 6 |
|
Current Drain @ 24VDc (A) |
1 |
| Environmental | |
|
Operating Temperature (°C): |
-30℃ to +60℃ |
|
Storage Temperature (°C): |
-40℃ to +70℃ |
|
Environmental Enclosure |
Non-Sealed (module) |
