Hunting rangefinder for hunter
|
Measure Range |
6-1000/ 1500/ 2000/ 3000m |
Field of view |
7° |
|
Objective lens |
22mm |
Exit pupil diameter |
3.7mm |
|
size |
107 * 76* 42mm |
weight |
160g |
|
Measuring range |
5-600/ 1000/ 1500/ 3000m |
Range accuracy |
< 400m±1m, > 400m <±0.4%m |
|
Angle range |
< ±60º |
Angle accuracy |
±1° |
|
Battery |
CR2 (3v) |
Screen |
Transparent LCD |
|
Certificate |
FCC, RoHS, CE |
OEM/ODM |
yes |
Switch Operation Method:
Switch the DIP switch to the left to enable the functions of Angle measurement, slope correction and horizontal distance measurement; Turn the DIP switch to the right to disable the functions of measuring Angle, slope correction and horizontal distance.
Mode Description
1) Into M1 mode, aiming at this golf flag, and short press power button, move the cross sign on the screen slowly from one side to the other side of the flag, when the flag sign stop flashing and machine vibrate (about 1 second), range data to the flag will be showed on the screen.
2) Into M2 mode, short press the power button after targeting, the distance and angle will be displayed on the LCD.
Note: The model support continuous ranging function.The two sides are respectively equipped with magnets and slope light.
Mini hunting assistant
Our exclusive Pin Acquisition Technology lets you lock onto the pin from up to 200 yards away, ensuring accuracy even when trees and other objects are in the background.
Exclusive jolt feature confirm distance acquisition to flag with confidence.
Slope measurement technology measures angle of incline or decline then automatically calculates the slope adjusted distance.
Superior accuracy to +/- 1 yard.
Precautions:

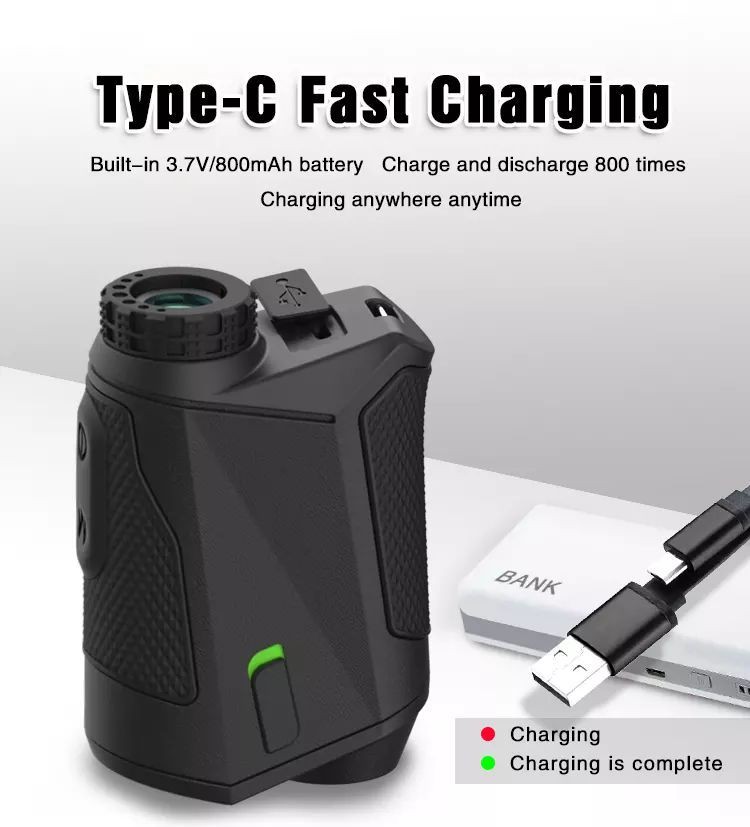

Battery specification: built-in 3.7v lithium battery
Battery life: 800 times of charging and discharging
Power adapter: 5V/0.8A (the accessory does not include the power adapter);
If the battery is insufficient, please charge it in time;
The power indicator light shows red to indicate that it is charging, and the indicator light shows green to indicate that the charging is complete.
1) Please remove the battery when the battery is exhausted or not in use for a long time;
2) Do not place the battery in an extremely humid environment;
3)Waste batteries shall be recycled or disposed of in an appropriate manner.
Simple Operation:
Press "on/ off" button to open the rangefinder-press "mode" button to change the mode you want----press "on/off" button to make the measurement.
Automatically Turn Off:
It will automatically turn off to Save power, without operation for 8 seconds.
Precautions:
1.1 Laser safety
The device uses Class I safe laser,please do not look at the laser emission aperture after pressing the power button, although there is no harm.
1.2 Storage
Please keep the product out of reach of children. Do not place on high and / or unstable places to prevent falling and causing damage.Do not place the product in a high temperature environment or it may cause damage of the electronics.
