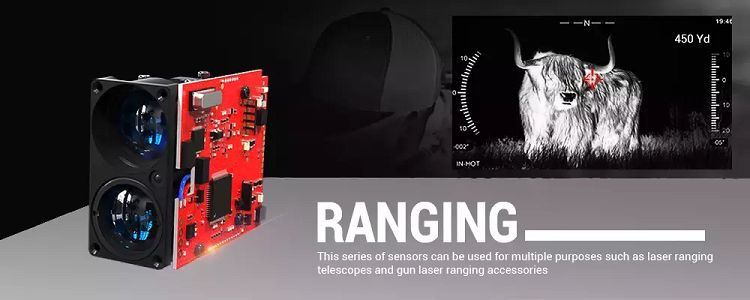

laser rangefinder module sensor
Product Parameter
Product Name | Laser Ranging Module |
Measuring Range | 5~600/ 1000/ 1500/ 3000m |
Ranging Accuracy | 5~100m, ±0.5m; 100~400m, ±1m; >400m,±0.4%m |
Ranging Frequency | 10HZ (Higher frequency can be customized) |
data format | hexadecimal |
Baud Rate | 9600~230400bps (Universal) |
Laser Divergence Angle | 3mrad |
Laser Type | 905nm |
Laser Safety Level | Class 1 |
Working Voltage | 3~5V |
Working Current | 110mA |
Power Supply | Serial port power supply |
Product Weight | 36g |
Size | 57mm*26mm*42mm |
Operating Temperature | -20℃ ~50℃ (-4~122℉) |
Data interface | TTL (Can be switched to RS232 by adapter line) |
Impact Resistance | 800G/ms (10times/s) |
About Packaging:
* Anti-static plastic bag*1
* Support customized packaging
* If you need to ship in bulk, we provide shockproof environmentally friendly corrugated boxes.
About Products:
1) Transportation
Please add enough cushioning material to the box to avoid unnecessary damage during transport.
2) Storage
Please keep the product out of reach of children. Do not place on high and / or unstable places to prevent falling and causing damage.
