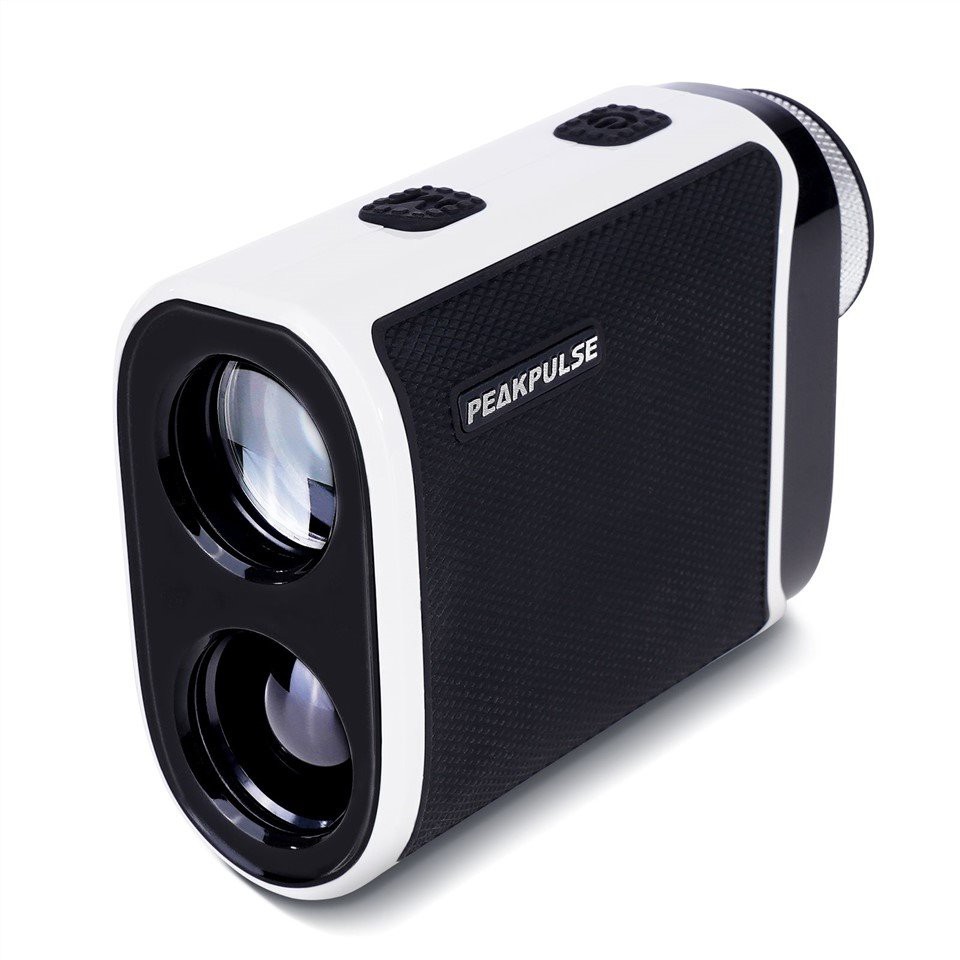

Small golf rangefinder
Product Specifications
|
Range |
5-3000m |
|
Angle Measuring Range |
±1° |
|
Angle Measuring Accuracy |
-60°-60° |
|
Measuring Range of Speed |
20-300km/h |
|
Laser type |
905nm (Class I laser) |
|
Magnification type |
6X |
|
Exit Pupil Diameter |
3.7mm |
|
Object Lens Size |
24mm |
|
Field Angle |
7.5° |
|
Weight |
178g |
|
Dimensions |
125mm*77mm*45mm |
|
Operating Temperature |
-10°C-50°C |
|
Ranging accuracy (m) |
<400m±1m, >400m<±0.4%m |
Operation Method:
The DIP switch is disabled: Push the DIP Switch to the right. Short press the button and release it after aiming at the flagpole, then scan both sides of the flagpole (flag part) with the target center, the distance to the flagpole is displayed at the bottom of the screen and when the icon stops flashing and the body vibrates.
The DIP switch is enabled: Push the DIP Switch to the left. Short press the button and release it after aiming at the flagpole, then scan both sides of the flagpole (flag part) with the target center, the distance to the flagpole is displayed at the bottom of the screen and when the icon stops flashing and the body vibrates. The Slope Correction Distance would be displayed on the top of the screen.
