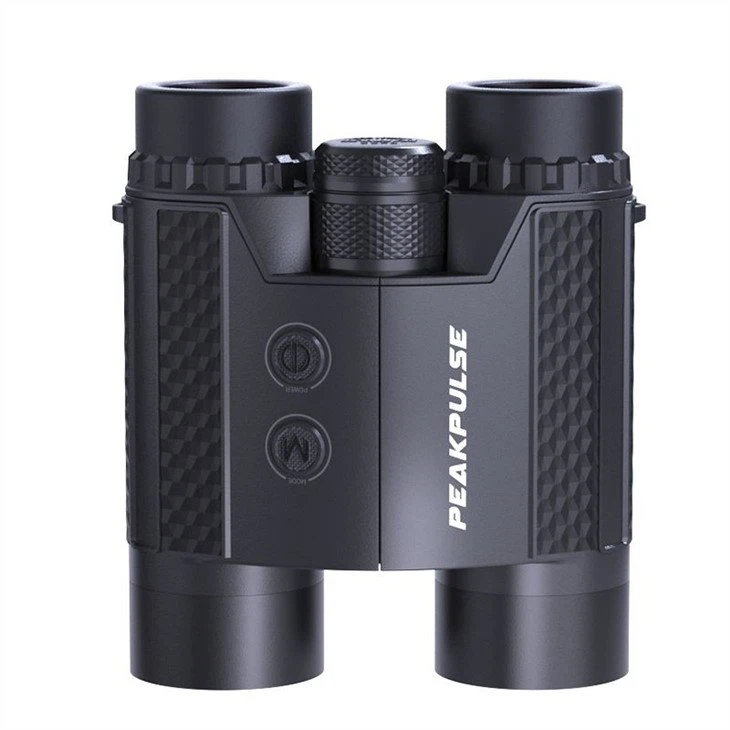

Laser rangefinder sensor telescope
Product specifications
Measuring leaves (m) | 800 |
Deer measuring range (m) | 600 |
Measuring range | 5-3000m |
Close focus distance (m) | 3.5 |
Ranging accuracy (m) | <400±1m,>400±0.4%m |
Ranging response time (S(m) | 1:＜0.3 (≤400) 2:＜0.7 (400~1000) 3:＜1 (1000~2000) |
Angle measuring range (°) | ±90 |
angle measurement accuracy (°) | ±1 |
Tilt function | have |
Rain and fog day mode | Yes |
Mode setting time (s) | 3s |
Display brightness adjustment | Have |
Low battery display | Yes/3 levels |
Display automatically close (S) | 8s |
Laser type (nm) | 905 (ciass1Iaser) |
The range of this series of range-finding telescopes is defined in the following conditions:
1) The measurement target has medium reflectivity: such as the wall of a building;
2) The reflection surface of the measurement target is perpendicular to the laser emission direction;
3) The measured weather is sunny but not under direct sunlight;
4) The area of the measuring reflecting surface is not less than 2m*2m.
Note: It is recommended that you use a tripod to fix the machine when measuring long-distance targets to reduce the jitter of the machine during the measurement process, so as to obtain better measurement results.
Precautions
1. Laser Safety
1) Do not press the switch button while aiming at or viewing the optical system from the end of the laser emitting hole, so as not to cause damage to the eyes;
2) Do not view the laser through other optical instruments (such as lenses or binoculars), which may cause damage to the eyes.
2. Battery Safety
1) Do not put the battery and metal objects such as keys or coins in your pocket or purse at the same time, as this may cause the battery to overheat or short-circuit;
2) Do not charge the (original) battery marked "Not Recharge". When it is not used for a long time, please remove the battery to avoid battery leakage.
About Us:
R&D team
We was awarded the national high-tech enterprise in china in 2017. At present, we R&D team exceed more than 100 engineers. We could provide OEM / ODM services for you.
Production qualification &capacity
We has an independent manufacture base more than 6800㎡, always strictly implemented the ISO9001 quality management system.
We adhere to the high standards of product quality, strict requirements, advance management and production experience.
Service team
We has a a comprehensive service process to serve end customers around the world. Whenever you have any questions, you can contact us at any time.
